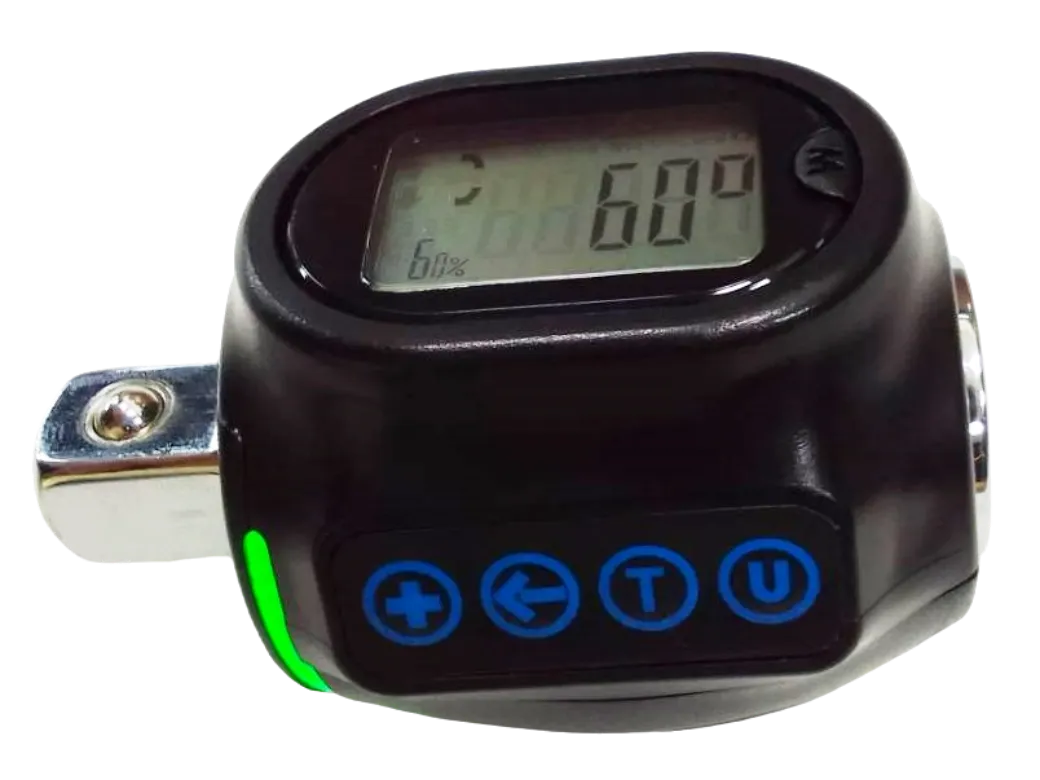

TEA02-1/2"
2nd Gen Angle Digital Torque Adaptor 40-200Nm
▶S2 series
-
- Model：TEA02-1/2"
- Depth (mm)：50.9
- Height (mm)：50.7
- Length (mm)：75.2
- Gram：188g
- Torque Range：40~200Nm
- Resolution：0.1 Nm
- Accuracy / Torque Mode：CW:±2%; CCW:±2%
- Accuracy / Angle Mode：±3%
- LED：Red light
- Unit：Kg-cm, Kg-m, ft-lb, in-lb, N-m
- Ratchet Size：1/2”
- Battery：DC 3V, CR2032
- Operating Temperature：-10°C~60°C
- Storage Temperature：-20°C~70°C
-
Model TEA02-1/2" Depth (mm) 50.9 Height (mm) 50.7 Length (mm) 75.2 Gram 188g Torque Range 40~200Nm Resolution 0.1 Nm Accuracy / Torque Mode
Accuracy / Angle ModeCW:±2%; CCW:±2%
±3%LED Red Light Unit Kg-cm, Kg-m, ft-lb, in-lb, N-m Ratchet Size 1/2" Battery DC 3V, CR2032 Operating Temperature -10°C~60°C Storage Temperature -20°C~70°C
左右尚有資訊-
Porduct Description
- Model：TEA02-1/2"
- Depth (mm)：50.9
- Height (mm)：50.7
- Length (mm)：75.2
- Gram：188g
- Torque Range：40~200Nm
- Resolution：0.1 Nm
- Accuracy / Torque Mode：CW:±2%; CCW:±2%
- Accuracy / Angle Mode：±3%
- LED：Red light
- Unit：Kg-cm, Kg-m, ft-lb, in-lb, N-m
- Ratchet Size：1/2”
- Battery：DC 3V, CR2032
- Operating Temperature：-10°C~60°C
- Storage Temperature：-20°C~70°C
-
Same Series Comparison
Model TEA02-1/2" Depth (mm) 50.9 Height (mm) 50.7 Length (mm) 75.2 Gram 188g Torque Range 40~200Nm Resolution 0.1 Nm Accuracy / Torque Mode
Accuracy / Angle ModeCW:±2%; CCW:±2%
±3%LED Red Light Unit Kg-cm, Kg-m, ft-lb, in-lb, N-m Ratchet Size 1/2" Battery DC 3V, CR2032 Operating Temperature -10°C~60°C Storage Temperature -20°C~70°C
Digital Torque Adaptor S2 Series
To better detect abnormalities in fasteners, such as bolt stretching or excessive twisting, we have introduced Angle Mode and Light Bar functions in the Digital Torque Adapter S2 Series. These features help reduce failure risks and enhance product safety.In certain applications, bolt fastening requires a specific rotation angle rather than just a specific torque value. This ensures consistent fastening for each bolt, minimizing quality issues caused by torque variations. Additionally, the light bar provides a visual alert by displaying different colors as the torque approaches various target torque values, it can also intuitively remind users.
Angle mode prevents over-tightening
LED light bar function to display the maximum torque limit value
High Accuracy: ±2
Energy-saving battery design
Automatically enters sleep mode after three minutes of inactivity
Reversible LCD screen display
Selectable Peak/Track mode
Buzzer & LED red warn light for pre-settable target torque
Five selectable torque units
- Kg-cm、Kg-m、Ft-lb、In-lb、N-m
