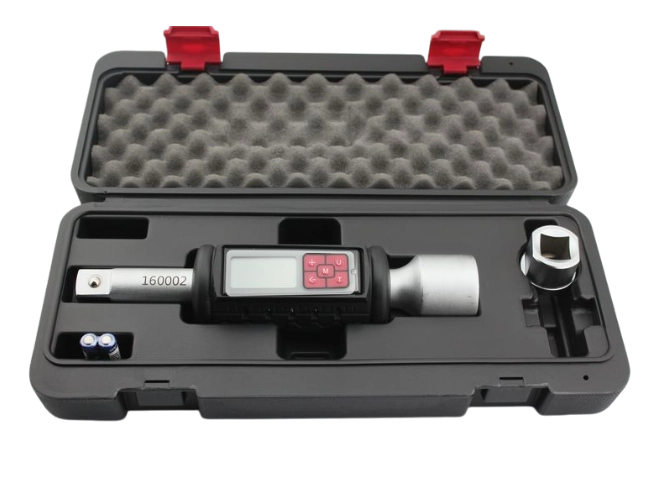

TEA01-3/4"

Digital Torque Wrench M Series 70-813Nm

▶M series

- Model：TEA01-3/4"
- Depth (mm)：50.7
- Height (mm)：56.7
- Length (mm)：250
- Gram：1295g
- Torque Range：70~813Nm
- Resolution：0.1 Nm
- Accuracy：CW:±2%; CCW:±2%
- LED：Red light
- Unit：Kg-cm, Kg-m, ft-lb, in-lb, N-m
- Ratchet Size：3/4"
- Battery：DC 3V, CR2032
- Operating Temperature：-10°C~60°C
- Storage Temperature：-20°C~70°C

左右尚有資訊


Model	TEA01-3/4"
Depth (mm)	50.7
Height (mm)	56.7
Length (mm)	250
Gram	1295g
Torque Range	70~813Nm
Resolution	0.1 Nm
Accuracy	CW:±2%; CCW:±2%
LED	Red Light
Unit	Kg-cm, Kg-m, ft-lb, in-lb, N-m
Ratchet Size	3/4"
Battery	DC 3V, AAA Type
Operating Temperature	-10°C~60°C
Storage Temperature	-20°C~70°C

Porduct Description
- Model：TEA01-3/4"
- Depth (mm)：50.7
- Height (mm)：56.7
- Length (mm)：250
- Gram：1295g
- Torque Range：70~813Nm
- Resolution：0.1 Nm
- Accuracy：CW:±2%; CCW:±2%
- LED：Red light
- Unit：Kg-cm, Kg-m, ft-lb, in-lb, N-m
- Ratchet Size：3/4"
- Battery：DC 3V, CR2032
- Operating Temperature：-10°C~60°C
- Storage Temperature：-20°C~70°C

Same Series Comparison

左右尚有資訊


Model	TEA01-3/4"
Depth (mm)	50.7
Height (mm)	56.7
Length (mm)	250
Gram	1295g
Torque Range	70~813Nm
Resolution	0.1 Nm
Accuracy	CW:±2%; CCW:±2%
LED	Red Light
Unit	Kg-cm, Kg-m, ft-lb, in-lb, N-m
Ratchet Size	3/4"
Battery	DC 3V, AAA Type
Operating Temperature	-10°C~60°C
Storage Temperature	-20°C~70°C

Digital Torque Adaptor M Series

The digital torque adapter M series has a larger drive head and stronger structural design, and is suitable for use in operating ranges with high torque requirements, such as the assembly of large equipment, heavy machinery maintenance, construction, bridge construction, or generator set maintenance.This product can withstand high pressure, maintain stability under high torque, reduce the risk of loss due to torque overload, and provide fast and stable torque output.
