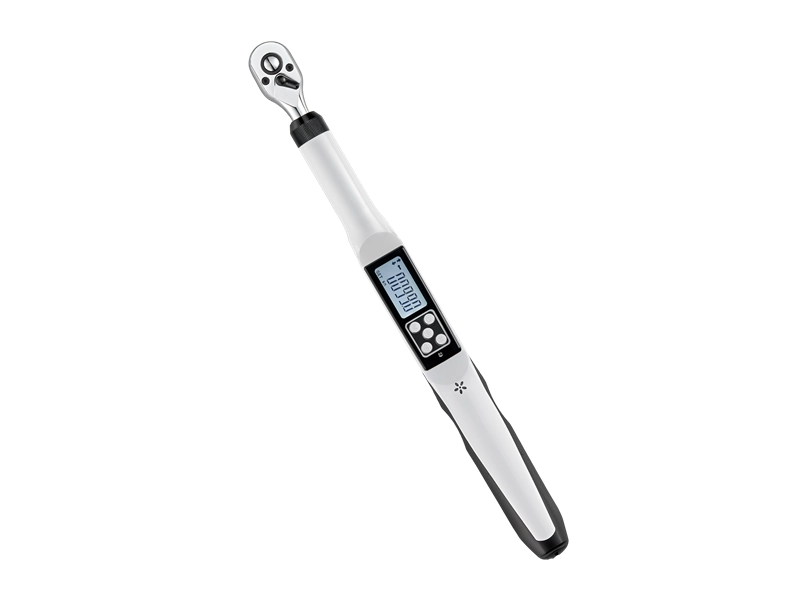

DTW0138
Smart Digital Torque Wrench 27-135Nm
▶S series
-
- Model: DTW0138
- Specification: 3/8 inch
- Depth(mm): 32
- Height(mm): 31.5
- Length(mm): 420
- Teeth: 72
- Gram: 760g
- Torque Range: 27~135Nm
- Resolution: 0.1 Nm
- Accuracy: CW: ±2%
- LED：Red light
- Unit: Kg-cm, Kg-m, ft-lb, in-lb, N-m
- Ratchet Size: 3/8"
- Battery: 2 x AAA alkaline batteries
- Operating Temperature: -10°C~60°C
- Storage Temperature: -20°C~70°C
-
Model DTW0138 DTW0112 DTW01121 Specifications 3/8 inch 1/2 inch 1/2 inch Depth(mm) 32 32 40.4 Height(mm) 31.5 36 41 Length(mm) 420 420 530 Teeth 72 72 36 Gram 760g 765g 1160g Torque Range 27~135Nm 40~200Nm 40~350Nm Resolution 0.1 Nm 0.1 Nm 0.1 Nm Accuracy CW: ±2% CW: ±2% CW: ±2% LED Red Light Red Light Red Light Unit Kg-cm, Kg-m, ft-lb, in-lb, N-m Kg-cm, Kg-m, ft-lb, in-lb, N-m Kg-cm, Kg-m, ft-lb, in-lb, N-m Ratchet Size 3/8" 1/2" 1/2" Battery 2 x AAA alkaline batteries 2 x AAA alkaline batteries 2 x AAA alkaline batteries Operating Temperature -10°C~60°C -10°C~60°C -10°C~60°C Storage Temperature -20°C~70°C -20°C~70°C -20°C~70°C
There is still information left and right-
Porduct Description
- Model: DTW0138
- Specification: 3/8 inch
- Depth(mm): 32
- Height(mm): 31.5
- Length(mm): 420
- Teeth: 72
- Gram: 760g
- Torque Range: 27~135Nm
- Resolution: 0.1 Nm
- Accuracy: CW: ±2%
- LED：Red light
- Unit: Kg-cm, Kg-m, ft-lb, in-lb, N-m
- Ratchet Size: 3/8"
- Battery: 2 x AAA alkaline batteries
- Operating Temperature: -10°C~60°C
- Storage Temperature: -20°C~70°C
-
Model Comparison
Model DTW0138 DTW0112 DTW01121 Specifications 3/8 inch 1/2 inch 1/2 inch Depth(mm) 32 32 40.4 Height(mm) 31.5 36 41 Length(mm) 420 420 530 Teeth 72 72 36 Gram 760g 765g 1160g Torque Range 27~135Nm 40~200Nm 40~350Nm Resolution 0.1 Nm 0.1 Nm 0.1 Nm Accuracy CW: ±2% CW: ±2% CW: ±2% LED Red Light Red Light Red Light Unit Kg-cm, Kg-m, ft-lb, in-lb, N-m Kg-cm, Kg-m, ft-lb, in-lb, N-m Kg-cm, Kg-m, ft-lb, in-lb, N-m Ratchet Size 3/8" 1/2" 1/2" Battery 2 x AAA alkaline batteries 2 x AAA alkaline batteries 2 x AAA alkaline batteries Operating Temperature -10°C~60°C -10°C~60°C -10°C~60°C Storage Temperature -20°C~70°C -20°C~70°C -20°C~70°C
Digital Torque WrenchS Series
In the era of rapid rise of AI artificial intelligence, technology is changing our lives, work and future at an alarming rate. In order to meet this unstoppable trend, we have developed this smart technology product specially designed for modern users who pursue innovation and efficiency. We not only pursue functional excellence, but are also committed to presenting the ultimate aesthetic design.
The Digital Torque Wrench S series adopts simple appearance design, exquisite craftsmanship and high-quality material selection to highlight your pursuit of life style.
Three-step easy setup
High Accuracy: ±2%
Energy-saving battery design
- 16,000 uses (with sound & light alerts)
- 100,000 uses (without sound & light alerts)
Reversible LCD screen display
Selectable Peak/Track mode
Torque pre-warning with triple alerts (sound, light, vibration)
Five selectable torque units
- Kg-cm、Kg-m、Ft-lb、In-lb、N-m
